80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge

Product Categories
Beijing Universe Technologies Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

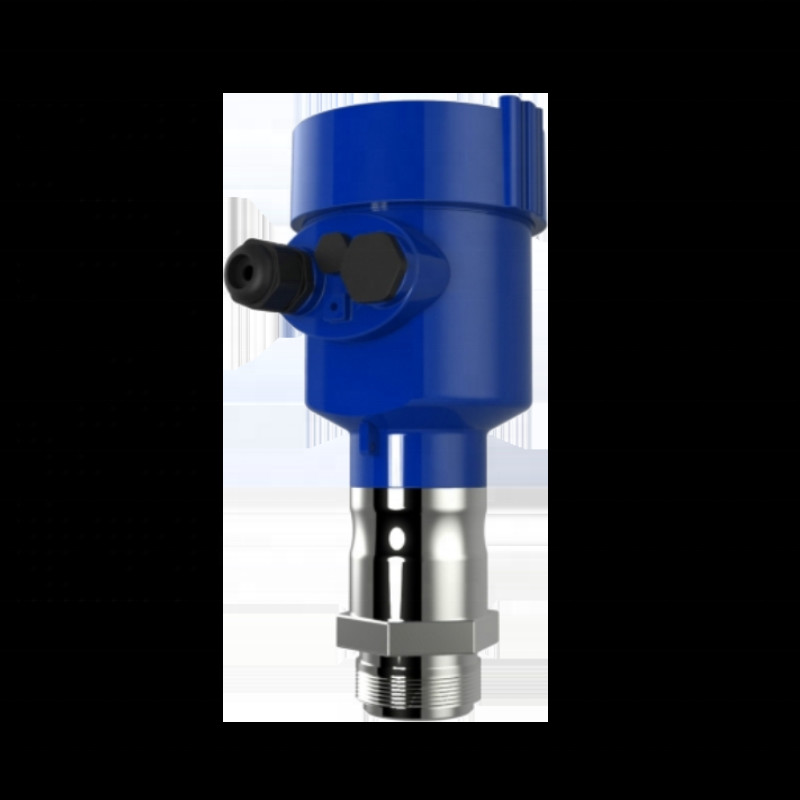

80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge

Model Number : UBLG-80A

Place of Origin : Beijing, China

Brand Name : UNIVO

Price : $498.00/sets 1-5 sets

Series : UBLG-80A

Mounting Type : -

Description : Easy to install, 80G Radar level gauge

Manufacturing Date Code : 2024

Type : Liquid Level Sensor, Radar level gauge

Usage : Solid liquid measurement

Theory : -

Output : 4~20mA;RS485 Mod bus

Range : 0.1~15m

Working temperature : -40~80℃

Contact Now

Product Description
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
Solid measurement: powder, particles, blocks (plastic particles with low dielectric constant) Liquid measurement: liquid level of reaction kettle, big steam, foam products, crystallization products, ultra-high temperature products, ultra-high pressure products, sanitary products
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
Process Connection
Flange/material 304 stainless steel, PP
Antenna profile
PTFE
Shell
Cast aluminum/stainless steel/plastic ABS
Sealing between shell and shell cover
silicon rubber
Shell Window
polycarbonate
Grounding terminal
Stainless steel
Power supply voltage
Four wire system
(12-24) VDC
Power consumption max80mADC24V/2W
Allow ripple<100Hz Us
(100-100K) Hz Uss<10mV
Dual chamber housing
(198-242) V AC four wire system
110V AC four wire system
Cable parameters
Cable entry/plug
1 M 20xl.5 cable entry
1 blind plug M20xl. 5
Wiring terminals
Wire cross-section 2.5mm ²
Output parameters
output signal
(4-20) mA/RS 485 Modbus
resolving power
1mm
Fault signal
The current output remains unchanged; 20. 5mA; 22mA; 3.9mA
Integral time
(0-20) s, adjustable
Blind spot
0.08m/0.2m/0.3m
Maximum measurement distance
150 meters
Measurement interval
Approximately 1 second (depending on parameter settings)
Adjust time
Approximately 1 second (depending on parameter settings)
Working storage and transportation temperature
(-40~80) ℃
relative humidity
˂ 95%
pressure
Max. 2.5MPa
Seismic resistance
Mechanical vibration 10m/s ² , (10-150) Hz
Why Choose Us
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
Details Images
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
Company Profile
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
Product packaging
80G Solid Liquid Detection Easy Installation Millimeter Wave Radar Level Gauge
FAQ
Q1. What are your packaging conditions? Answer: Usually, brown cardboard boxes are packaged with bubble bags inside to wrap the product. Q2. How long is your quotation valid? Answer: Our quotation is valid for 30 days. Q3. How is your delivery time? Answer: General standard type: 7-15 working days after confirming the order based on the quantity; Non standard types require communication and confirmation with us. Q4. What is your minimum order quantity? Answer: According to different product types, the cost varies and the minimum order quantity also varies. Please contact us for confirmation. Q5. How do you ensure good product quality? Answer: We have a complete quality control system; All of our products undergo a comprehensive inspection by the quality department before being shipped to customers. Q6. Can you produce based on samples? Answer: Yes, we can produce according to your samples or technical drawings. Q7. Can you accept OEM brands? Answer: Yes, we can accept OEM brands. Q8. How long is the warranty period for your product? Answer: Lifetime maintenance, 24 months of non human damage (calculated from the time of receipt), with free replacement if there are quality issues (damage caused by human factors, overload use, etc. are not within the warranty scope); Only material fees will be charged beyond the warranty period. Accessories and gifts are not covered by the warranty. Q9. How to deliver? Answer: For your convenience, we can send goods through DHL, TNT, UPS, SF, EMS, etc. for prepaid shipping, or use your own courier account to collect shipping fees. Q10. Can I take the sample? Answer: You can contact us to help you get the samples as soon as possible.
Purchase guide To recommend you the most suitable sensor, please tell us below information. 1. Working temperature: -40~+125 °C ? 2. Test range? 3. Output: 4-20mA , RS485 or others? 4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5? 5. Electrical connection: DIN43650, Packard, Direct lead? 6. Order quantity: ?
